Aquaking Red Label Drum Filter 25 (Basic 2)

Aquaking Red Label Drum Filter 25 (Basic 2)

2,200.00 inc VAT

This compact drum filter is characterised by an excellent price/quality ratio.

Out of stock

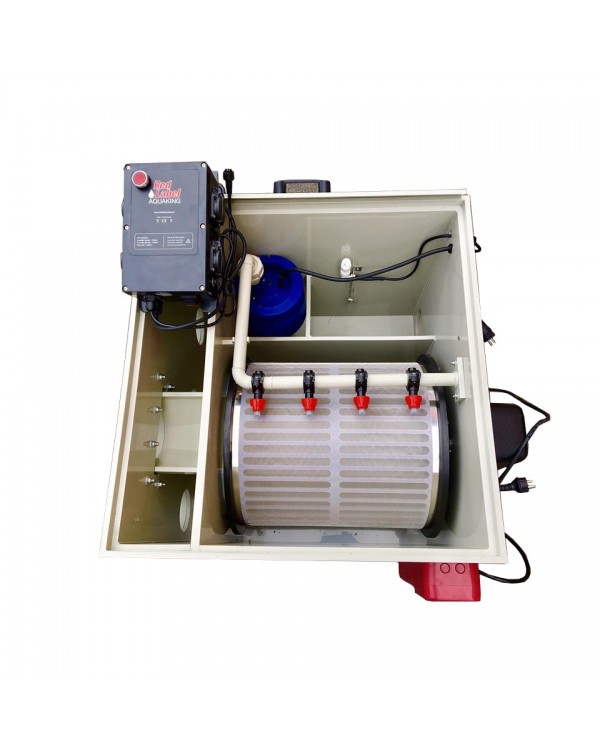

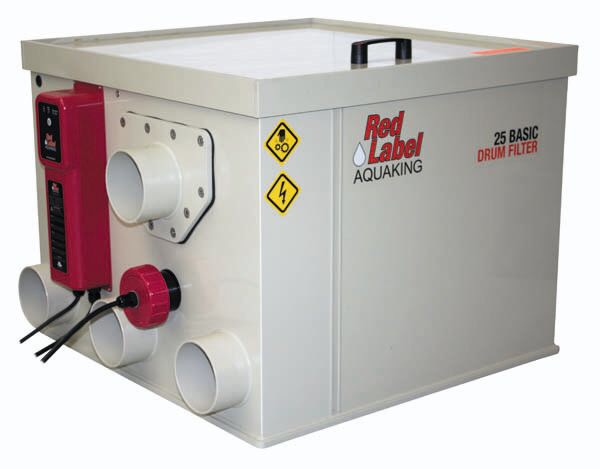

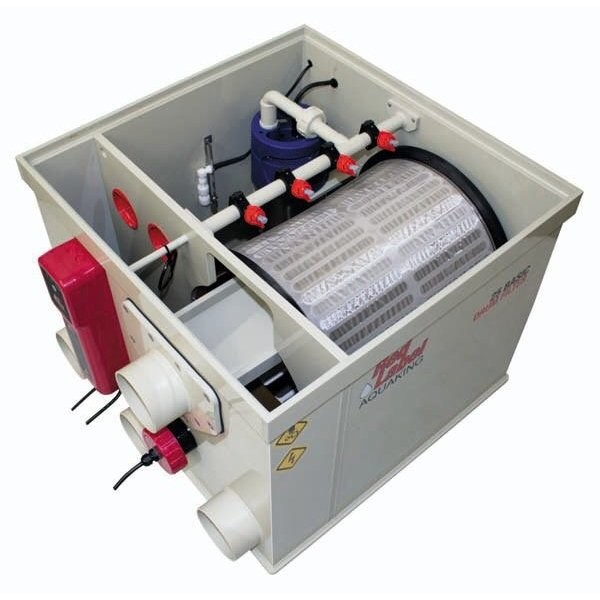

Aquaking Red Label Drum filter 25 basic 2

This compact drum filter is characterised by an excellent price/quality ratio.

The Aquaking Red Label Drum filter 25 basic 2 is a mechanical pre-filter that can easily filter very fine pollution (up to 70 microns) from a water flow.

The water flows into the filter gravity and flows through the gauze at the inside of the drum on which the dirt is left behind. With a certain degree of contamination, the gauze cloth will clog up, causing less water to pass through. On the outside of the gauze, the water level will therefore sink into the lter. When the water drops below a set level, it is “seen” by a sensor and a rinsing cycle starts. A drive motor ensures that the drum starts to rotate while the screen is sprayed through nozzles through a spray pump of 5 bar. The nozzles spray water with the dirt from outside of the screen in a drain. This polluted water is discharged via the gutter to the sewer. The flow of the screen cloth has been restored in this way so that the water level in the filter rises. A sensor detects when the water level has risen to the desired level and switches off the drive and spray pump. After this the entire cycle repeats itself again. This system ensures that the water leaving the lter does not contain any dirt particles that are larger than the openings in the screen or 70 micrometers. The removal of even finer dirt particles is not desirable because this adversely affects the biological filtering effect of the following elements of your filter line.

Size: (L x W x H) 675 x 815 x 530
Max. Flow 25m³ / h
Filter Panels 70 micron
Panel Dimensions Diameter 400 x 400 mm
Input 3 x 110 mm Output 2 x 110 mm
Dirt Output 1 x 110 mm
External Pump 5 Bar
Including Drive 60 Nm
Cover Security Magnetic Contact
Material Polypropylene
Color Sahara
